    Solution C


    1 Set Does 1 Axle | 6 Sleeves Per Set

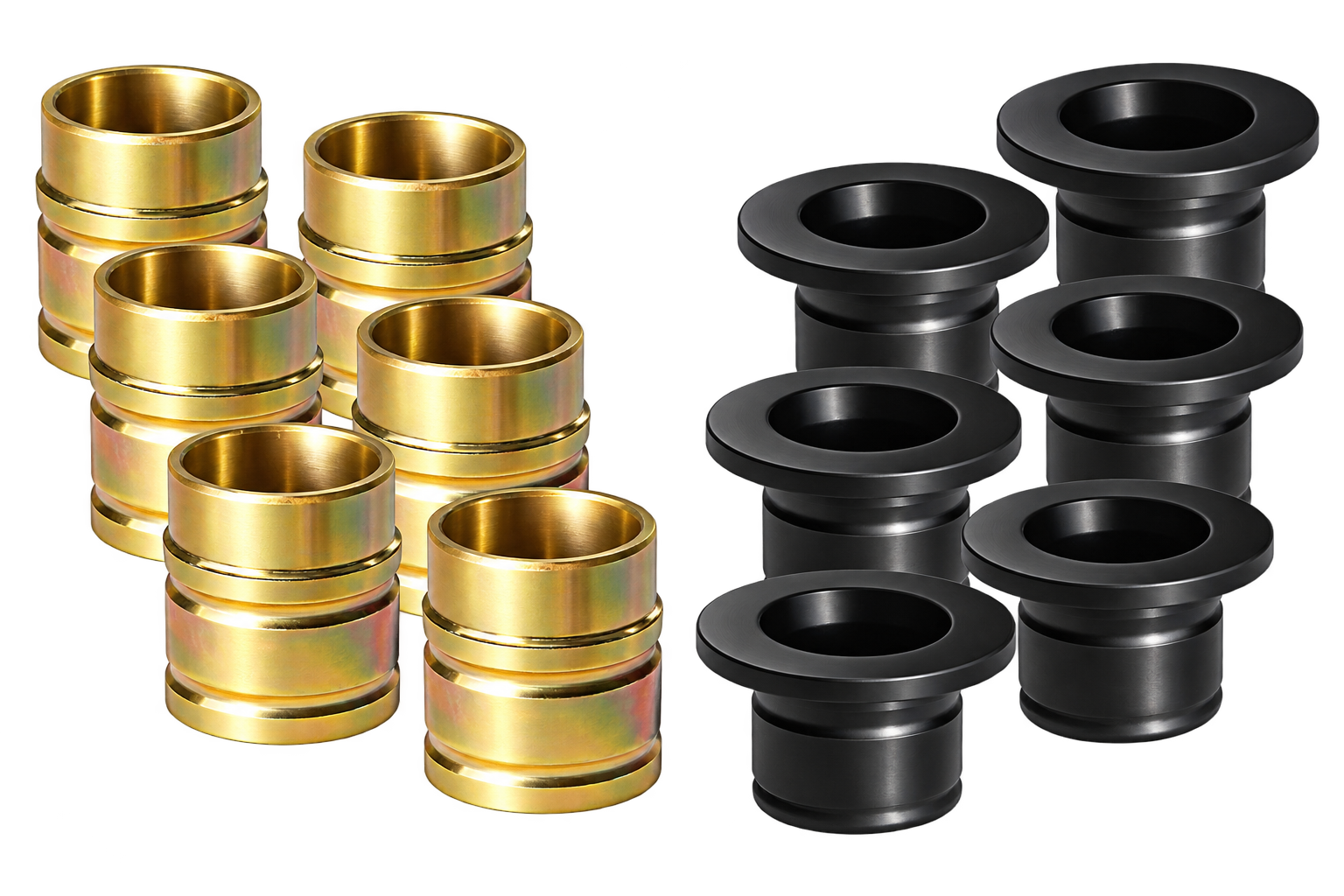

    Solution C is a patented (Pending) threaded internal centering sleeve. This wheel centering sleeve set is for use on steer and drive wheels as well as most trailers. These sleeves stay on the wheel stud permanently and are used at the 12, 4 and 8 oclock positions.


    We recommend using the proper TRU-BALANCE centering pin tool or the installation pin when mounting on the drive axles.


    One set includes six sleeves (three per wheel) and will center one axle. We offer many different sizes to fit most brake drums and wheels.


    Please see product specifications/instructables below to learn more and to choose the centering pins that meet your needs.


    How/Why TRU-BALANCE Works

    When mounting hub-piloted wheels all the weight of the wheel and tire rests on the top pilots creating a gap in the bottom pilots, leaving the wheel off center. A small gap the size of a business card can result in an off center wheel and an "egg-shaped" motion upon rotation. This uneven motion results in tire vibration and irregular tire wear. Even if you balance the tires, the wheel is still off center. The bottom line is you can't balance an egg.


    The TRU-BALANCE products bypass the hub-pilots and center the wheels back to the wheel studs which is the true center of the wheel. Once the wheels are properly centered the uneven motion and out of round condition is eliminated. The result is increased tire life, increased fuel mileage and an unbelievably smooth ride.


    TRU-BALANCE products are easy to use and install and come with a money back guarantee. We offer centering sleeve sets that stay on the wheel permanently as well as reusable centering pins that are used when mounting the wheel and then removed.


    Please see our diagrams and how to videos below for more information.


    Install Guide

    Instructables

    Instructables Gallery:

    Introduction: Single Sleeves/C-5000 Series


    Unpacking:

    Unpacking/Assembly: Whats in the package


    Demonstration:

    Demonstration: Use on dual wheel brake drums

    Demonstration: Use on dual wheels

    Troubleshooting:

    Demonstration: C-5000 Series


    Questions About Solution C:

    Please Call Us Toll Free @ 1-866-686-9285 | Mon-Fri 8am-5pm MST

    Benefits/Applications

    TRU-BALANCE Solution C external sleeves are for both aluminum/steel wheels and steer/drive axles. We also offer discounts on 3 sets or more and a warranty as well.


    Benefits Include:

    Stay On Wheels

    Sold In Sets Of 6 Per Axle

    Better Fuel Mileage

    Longer Tire Life

    Zinc Plated To Resist Corrosion

    Machined From Solid Steel Bar Stock


    Applications Include:

    Aluminum/Steel Wheel Types

    Steer/Drive Axles


    Discounts:

    10% off if you buy 3 sets or more.


    Warranty:

    1 year from date of purchase to be free of defects in materials or workmanship.



    C-5000 Series


    FOR DUAL WHEELS ONLY


    1 Set Does 1 Axle | 6 Sleeves Per Set

    1st Sleeve Centers Brake Drum/Inner Wheel



    The C-5000 Series and comes in many different configurations including some that offer brake drum centering.

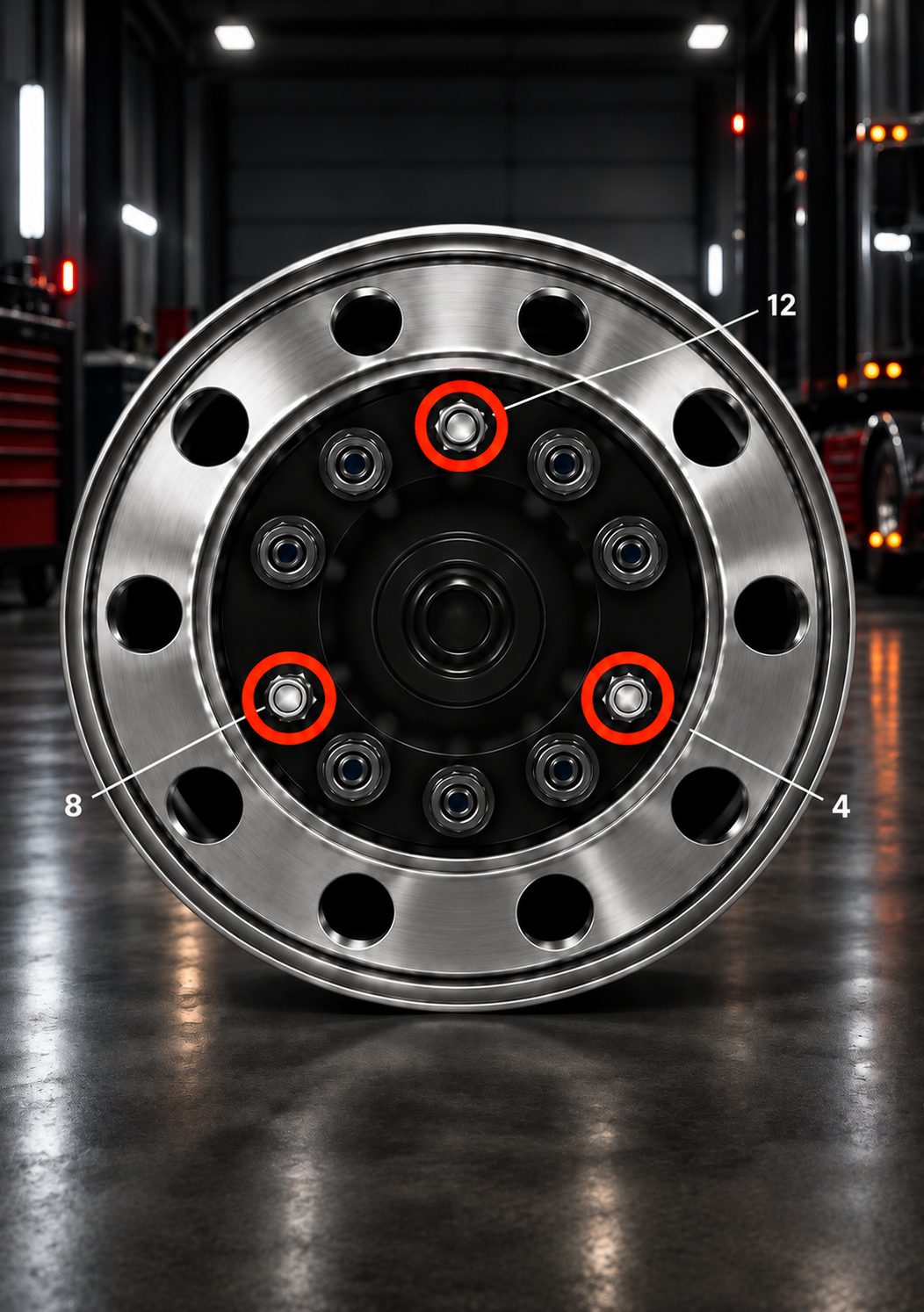

    These sleeves also stay on the wheel stud permanently and both pieces are used at the 12, 4 and 8 oclock positions.


    One set includes six sleeves for the inner wheel and brake drum (if applicable) and six sleeves for the outer wheel (use three sleeves per wheel).





    2nd Sleeve Centers Outer Wheel



    Benefits Include:

    Two Piece System Allows For Easier Install/Removal

    For Dual Aluminum/Steel Wheels

    Stay On Wheels

    Sold In Sets Of 6 Per Axle

    Better Fuel Mileage

    Longer Tire Life

    Zinc Plated To Resist Corrosion

    Machined From Solid Steel Bar Stock


    Applications Include:

    Aluminum/Steel Wheel Types

    Steer/Drive Axles


    Discounts:

    10% off if you buy 3 sets or more.


    Warranty:

    1 year from date of purchase to be free of defects in materials or workmanship.



    Centers Wheel/Brake Drum


    Wheel Size: 19.50"/22.50"/24.50" | Stud Size: 22mm | Hole Size: 1.053"/1.063"


    1 Set Does 1 Axle | 6 Sleeves Per Set

    C-5000-GAA


    Aluminum/Aluminum

    1 set of 6 C-2341-GA

    ~Brake Drum/Inner Wheel

    1 set of 6 C-1611-AS

    ~Outer Wheel


    Brake Drum Information

    Diameter Hole: 1"

    Hole Depth: 1/2"

    Conmet

    10001776

    Gunite

    3753AX
    3600A
    3771X
    3402X
    9006X
    3807X

    Webb

    66864B
    61950B
    66834F
    66889B

    $173.00

    C-5001-GAS


    Aluminum/Steel

    1 set of 6 C-2342-GS

    ~Brake Drum/Inner Wheel

    1 set of 6 C-1611-AS

    ~Outer Wheel


    Brake Drum Information

    Diameter Hole: 1"

    Hole Depth: 1/2"

    Conmet

    10001776

    Gunite

    3753AX
    3600A
    3771X
    3402X
    9006X
    3807X

    Webb

    66864B
    61950B
    66834F
    66889B

    $171.00

    C-5002-GSS


    Steel/Steel

    1 set of 6 C-2342-GS

    ~Brake Drum/Inner Wheel

    1 set of 6 C-1600-SS

    ~Outer Wheel


    Brake Drum Information

    Diameter Hole: 1"

    Hole Depth: 1/2"

    Conmet

    10001776

    Gunite

    3753AX
    3600A
    3771X
    3402X
    9006X
    3807X

    Webb

    66864B
    61950B
    66834F
    66889B

    $169.00

    Centers Wheel Only


    Wheel Size: 19.50"/22.50"/24.50" | Stud Size: 22mm | Hole Size: 1.053"/1.063"


    1 Set Does 1 Axle | 6 Sleeves Per Set

    C-5003-AA


    Aluminum/Aluminum

    1 set of 6 C-2435-A

    ~Brake Drum/Inner Wheel

    1 set of 6 C-1611-AS

    ~Outer Wheel


    DOES NOT CENTER BRAKE DRUM


    $138.00

    C-5004-AS


    Aluminum/Steel

    1 set of 6 C-2434-S

    ~Brake Drum/Inner Wheel

    1 set of 6 C-1611-AS

    ~Outer Wheel


    DOES NOT CENTER BRAKE DRUM


    $136.00

    C-5005-SS


    Steel/Steel

    1 set of 6 C-2434-S

    ~Brake Drum/Inner Wheel

    1 set of 6 C-1600-SS

    ~Outer Wheel


    DOES NOT CENTER BRAKE DRUM


    $133.00

    Heavy Duty Sleeve Sets


    Wheel Size: 19.50"/22.50"/24.50" | Stud Size: 22mm | Hole Size: 1.053"/1.063"


    1 Set Does 1 Axle | 6 Sleeves Per Set

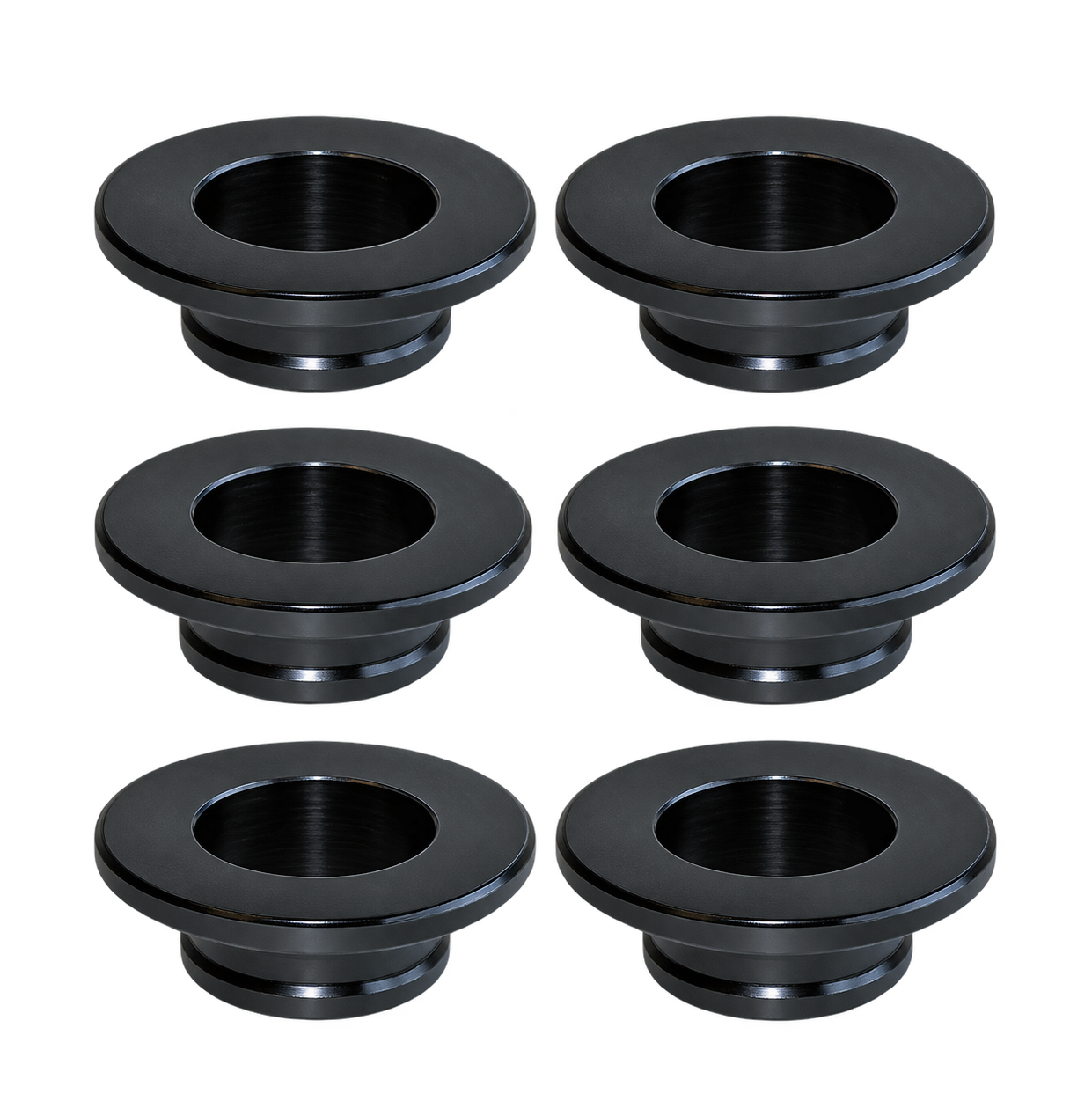

    C-1600-S


    Axle Position | Wheel Type

    Steer Axle

    Steel

    Works With Disc Brakes

    $86.00

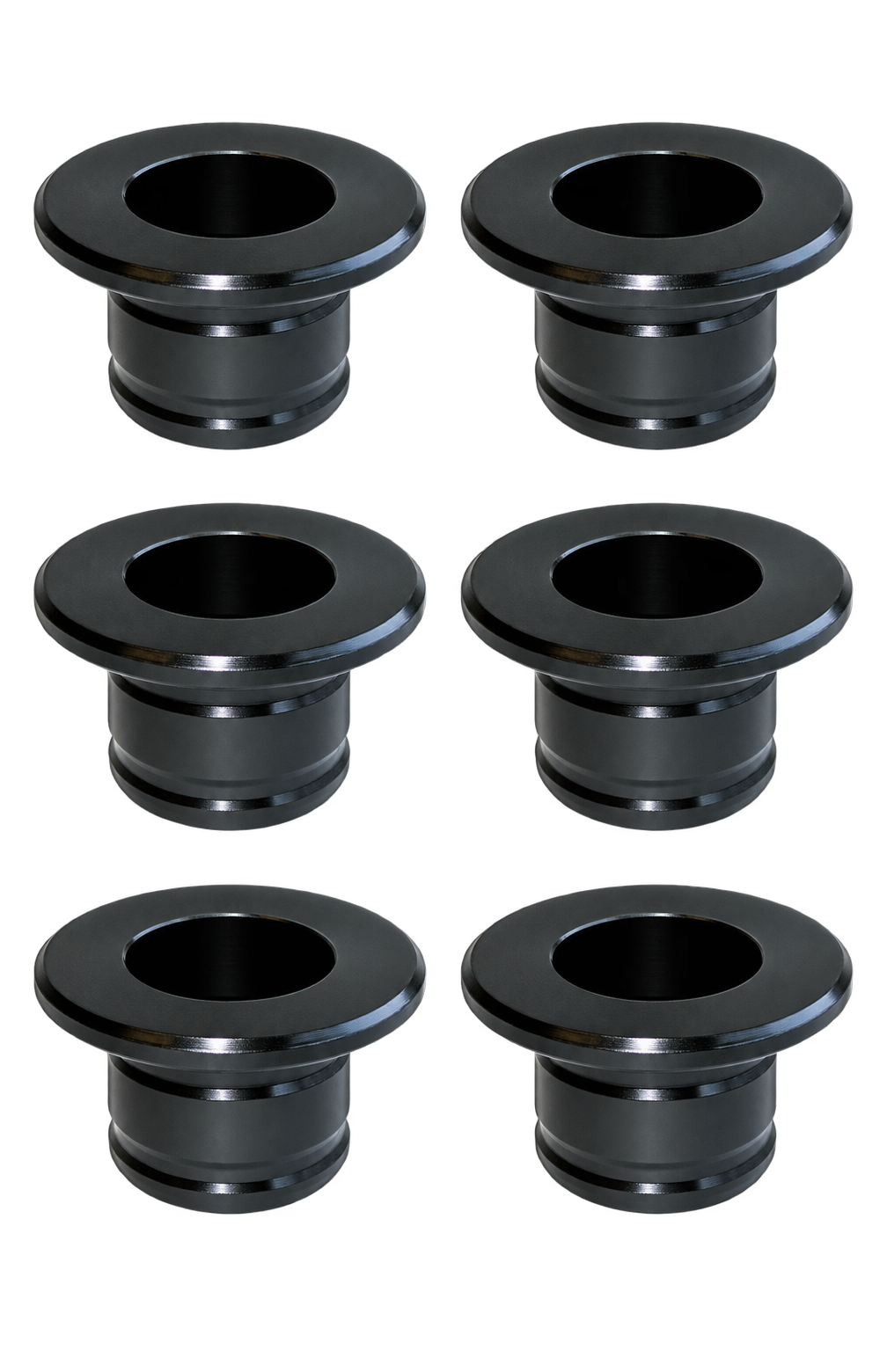

    C-1611-AS


    Axle Position | Wheel Type

    Steer Axle | Drive Axle

    Aluminum | Steel/Steel

    Works With Disc Brakes

    $97.00

    C-1664-HD-A


    Axle Position | Wheel Type

    Drive Axle

    Aluminum Super Single 14" Rim
    Wide Base Tire


    $97.00

    C-3935-HD-A


    Axle Position | Wheel Type

    Drive Axle

    Aluminum Super Single 14" Rim
    Wide Base Tire

    Brake Drum Information

    Diameter Hole: 1"

    Hole Depth: 1/2"

    Conmet

    10001776

    Gunite

    3753AX
    3600A
    3771X
    3402X
    9006X
    3807X

    Webb

    66864B
    61950B
    66834F
    66889B

    $81.00

    C-1671-HD-S


    Axle Position | Wheel Type

    Drive Axle

    Steel Super Single 14" Rim
    Wide Base Tire


    $97.00

    C-1744-AS


    Axle Position | Wheel Type

    Steer Axle | Drive Axle

    Aluminum | Steel/Steel

    Same as the C-1611-AS but .010 smaller outside diameter to fit smaller wheel holes

    $97.00

    GMC/GM 4500/5500


    Stud Size: 20mm | Hole Size: Various


    1 Set Does 1 Axle | 6 Sleeves Per Set

    C-1880-GMC-S


    Axle Position | Wheel Type

    Steer Axle

    Steel


    $95.00

    C-1882-GMC-SS


    Axle Position | Wheel Type

    Drive Axle

    Steel/Steel


    $97.00

    C-1913-GMC-A


    Axle Position | Wheel Type

    Steer Axle

    Aluminum


    $97.00

    C-1914-GMC-AS


    Axle Position | Wheel Type

    Drive Axle

    Aluminum/Steel


    $99.00

    C-1915-GMC-AA


    Axle Position | Wheel Type

    Drive Axle

    Aluminum/Aluminum


    $101.00

    Ford F450/F550


    Wheel Size: 19.50" | Stud Size: 14mm | Hole Size: Various


    1 Set Does 1 Axle | 6 Sleeves Per Set

    C-1896-FSS


    Axle Position | Wheel Type

    Drive | Steel/Steel

    Wheel Hole: .597"


    $95.00

    C-1898-FS


    Axle Position | Wheel Type

    Steer | Steel

    Wheel Hole: .597"


    $97.00

    C-1910-FA


    Axle Position | Wheel Type

    Steer | Aluminum

    Wheel Hole: .597"


    $97.00

    C-1911-FAS


    Axle Position | Wheel Type

    Drive | Aluminum/Steel

    Wheel Hole: .597"


    $99.00

    C-1912-FAA


    Axle Position | Wheel Type

    Drive | Aluminum/Aluminum

    Wheel Hole: .597"


    $101.00

    Special Application


    Wheel Size: Various | Stud Size: Various | Hole Size: Various


    1 Set Does 1 Axle | 6 Sleeves Per Set

    C-1742-HD-AS


    22mm Wheel Stud

    Aluminum Wheels

    Steer Axles

    Centers Wheel ONLY


    Axle Position | Wheel Type

    Axle Type: Steer

    Wheel Type: Aluminum/9" Wide Rim (Floaters)


    $101.00

    C-1773-WBD-A


    22mm Wheel Stud

    Aluminum Wheels

    Steer Axles

    Centers Wheel/Brake Drum


    Brake Drum Information

    1" Dia. Hole | 1/2" Hole Depth

    Wheel Type: Aluminum

    Brake Drum #'s
    3753AX
    3754AX
    3596BX


    $108.00

    C-1833-M2-GA


    22mm Wheel Stud

    Aluminum Wheels

    Steer Axles

    Centers Wheel/Brake Drum


    Brake Drum Information

    1" Dia. Hole | 1/2" Hole Depth

    Wheel Type: Aluminum

    Brake Drum #'s
    3753AX
    3754X


    $108.00
