C-1611-AS

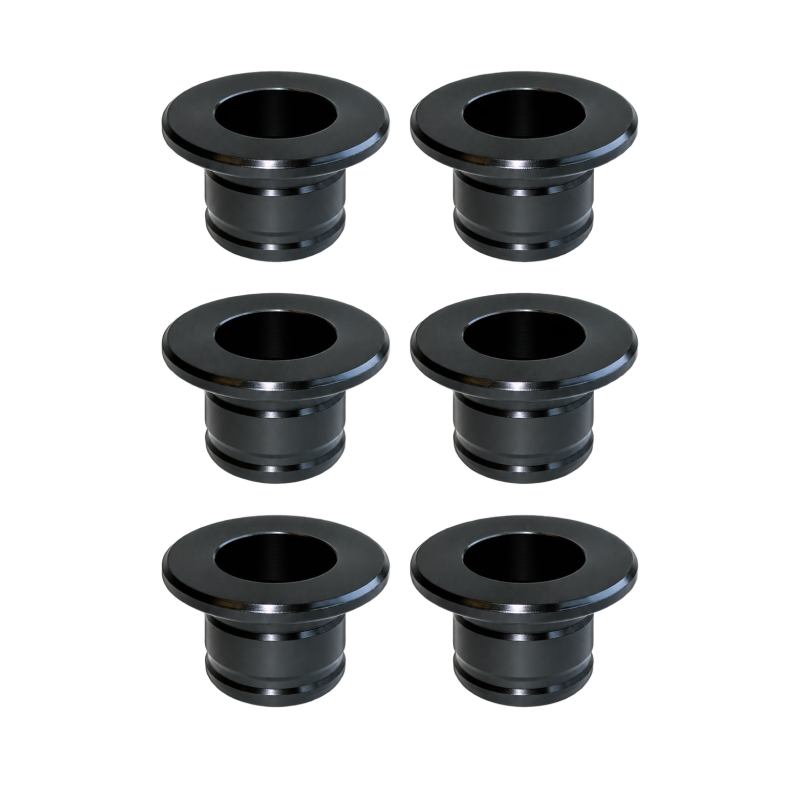

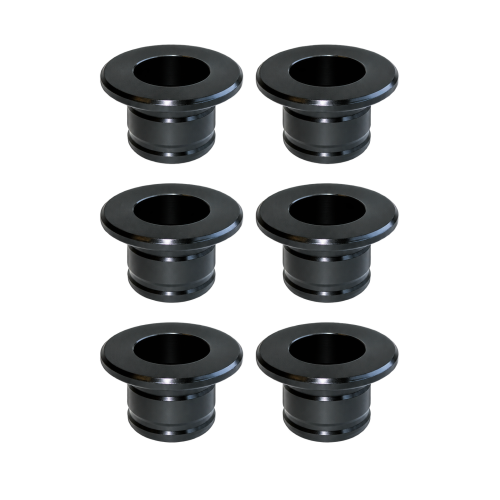

Permanent Steer & Drive-Axle Wheel Centering Sleeves
- Brand: Tru-Balance LLC
- Product Code: C-1611-AS
- Availability: In Stock
-
$116.00
-
- 3 or more $104.40
Product Specifications
| Axle Application | Steer / Drive |
| Steer-Axle Wheel Type | Aluminum |
| Drive-Axle Wheel Configuration | Steel Inner / Steel Outer |
| Wheel Sizes | 19.5", 22.5", 24.5" |
| Wheel Stud Size | 22 mm |
| Wheel-Hole Diameter | 1.053"–1.063" |
| Centering Application | Wheel Only |
| Brake Compatibility | Steer-Axle Disc Brake Applications |
| Material | Machined Solid Steel Bar Stock |
| Finish | Zinc Plated |
| Quantity | 6 Sleeves Per Axle |
Important Fitment Information
Designed for aluminum steer wheels, including applicable disc brake configurations, and steel/steel dual drive-wheel applications. Requires 22 mm wheel studs and wheel holes measuring 1.053"–1.063". This product centers the wheel only and does not center the brake drum. Verify wheel configuration and measurements before ordering.
Product Features
- Permanent wheel-centering solution for applicable steer and drive axles
- Centers the wheel during installation without centering the brake drum
- Remains installed on the wheel
- Compatible with applicable steer-axle disc brake configurations
- Machined from solid steel bar stock
- Zinc-plated finish helps resist corrosion
- Sold in sets of six sleeves per axle
Warranty
One year from the date of purchase against defects in materials or workmanship.
